Diode Dynamic SS5 Stealth Grille LED Pod Kit for 4Runner (2014-2024)


Earn 3,199 Points when you buy this item.

Select Kit Configuration: Two SS5 Sport (40 watts)
Select Optic and Color: White Combo
Price:
Sale price$639.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The SS5 Stealth Grille LED Pod Kit for the 2014-2023 Toyota 4Runner from Diode Dynamics allows you to mount two or four Stage Series 5-inch LED pods behind the factory grille without interfering with the Toyota Safety Sense! These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the factory bumper. No cutting or drilling required! This kit retains the factory grille for a clean, OEM-like appearance.

Features

  • Bolt-on fitment for the 2014-2023 Toyota 4Runner.
  • Allows you to mount two or four SS5 pods behind the grille.
  • Ultra-high intensity, with custom-engineered TIR optics.
  • Selectable backlight color, with eight color options.
  • Torture-tested, heavy-duty construction.
  • SS5 Pods are assembled in the USA.

In the Box:

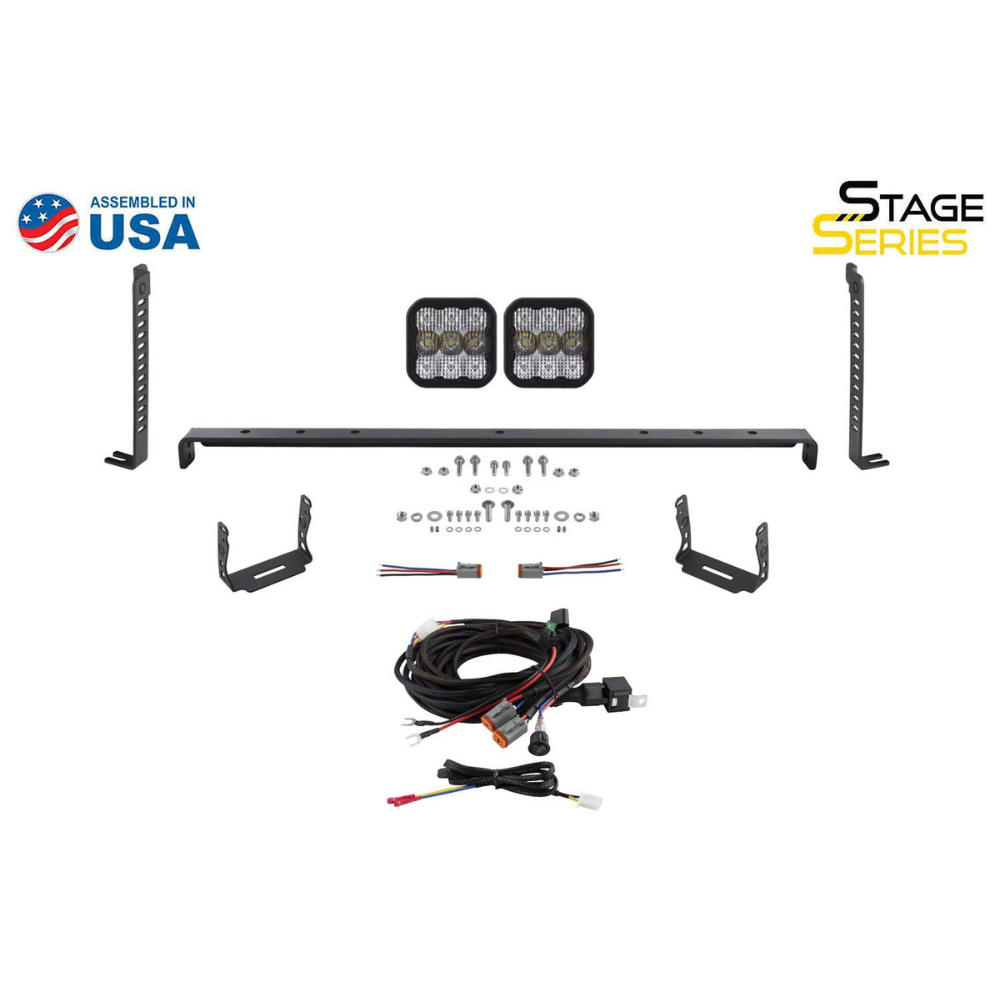

Two-Pod Kit:

  • Two (2) Stage Series 5-inch LED Pods
  • Two (2) Application-specific heavy-duty steel brackets for installation on 2014+ Toyota 4Runner
  • One (1) SS5 Crossbar Mount for installation on 2014+ Toyota 4Runner
  • One (1) Heavy-Duty Dual-Output Wiring Harness
  • Installation Guide

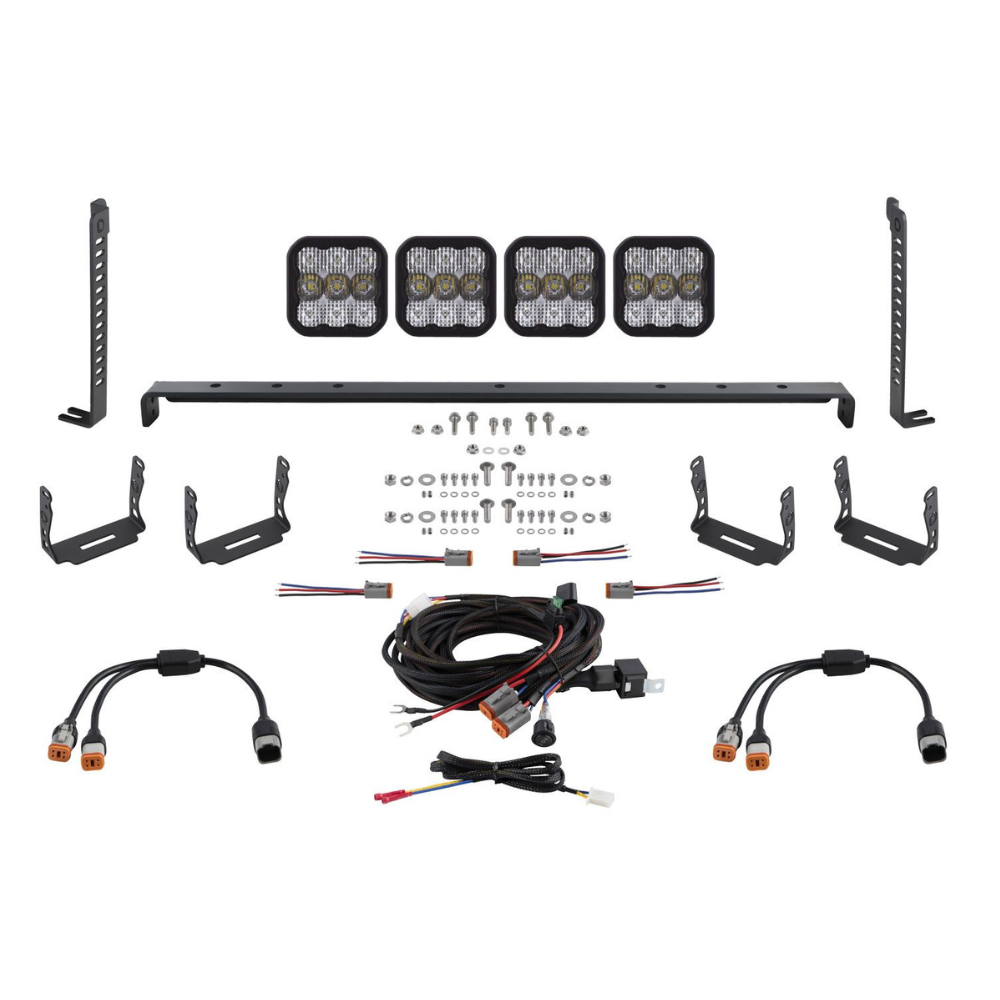

Four-Pod Kit:

  • Four (4) Stage Series 5-inch LED Pods
  • Two (2) Application-specific heavy-duty steel brackets for installation on 2014+ Toyota 4Runner
  • One (1) SS5 Crossbar Mount for installation on 2014+ Toyota 4Runner
  • One (1) Heavy-Duty Dual-Output Wiring Harness
  • Two (2) DT 4-Pin Splitter Harnesses
  • Installation Guide

Fitment

NOTE: This kit is not compatible with the Limited or Nightshade trim levels.

  • Make: Toyota
  • Model: 4Runner
  • Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
Specifications
  • Main Beam Power (watts): Sport: 40, Pro: 90
  • Backlight Power (watts): White: 3.17, Yellow: 3.07
  • Main Beam Current (amps @ 12.8V): Sport White: 2.75, Sport Yellow: 2.8, Pro: 6
  • Backlight Current (amps @ 12.8V): White: 0.25, Yellow: 0.24
  • Color Temp (CCT): 3000K, 6000K
  • Beam Angle: Driving, 20°x8°, Combo (Driving and Flood)
  • Operating Voltage: 9-16V
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Luxeon Z ES, Cree XP-L HI
  • Connector(s): Deutsch DT Input
  • Driver Features: Constant Current
  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
  • Cooling: Passive, Pin-Fin heatsink
  • Intrusion Ratings: IP69K Waterproof, High Pressure

Installation

  • Installation Time: 1-2 hours
  • Tools Needed: Basic Toolset
  • Modification: Basic Wiring Only
  • Installation Guide: Click to download
