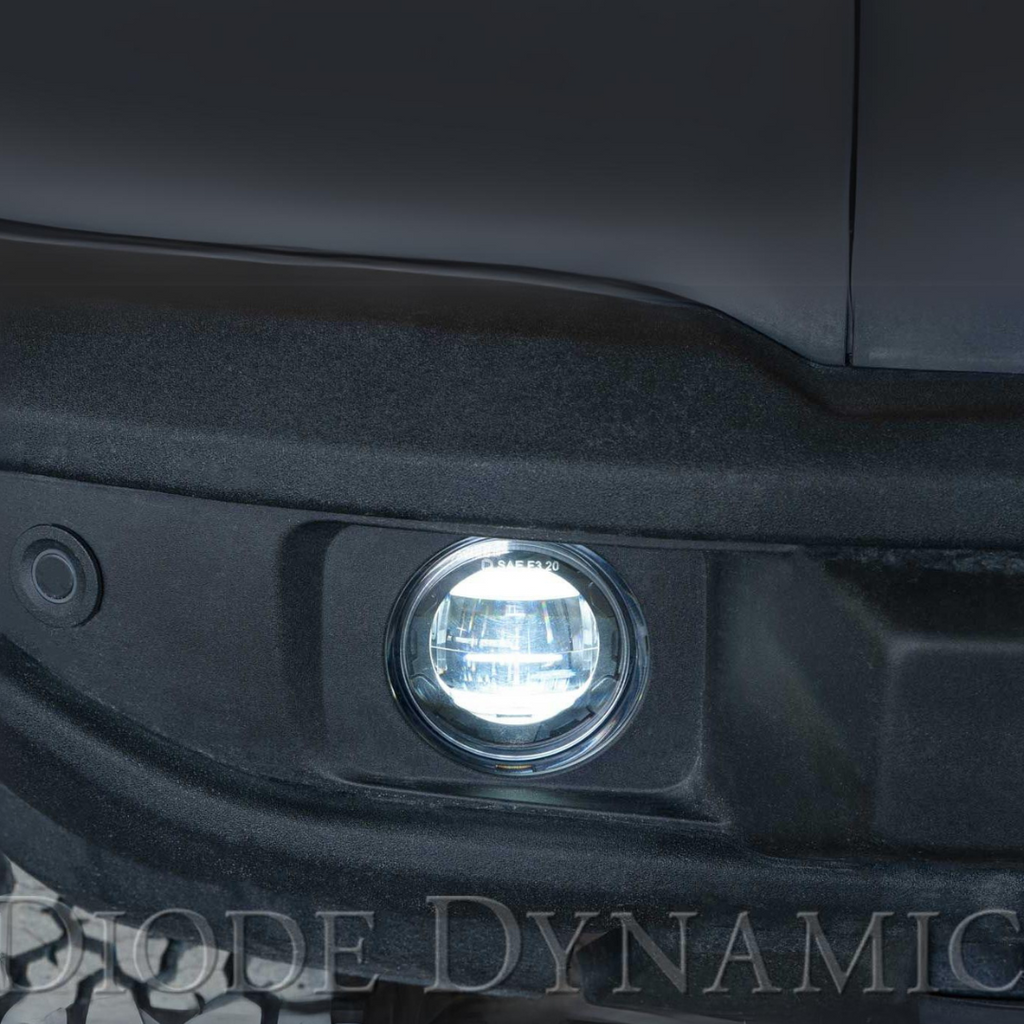

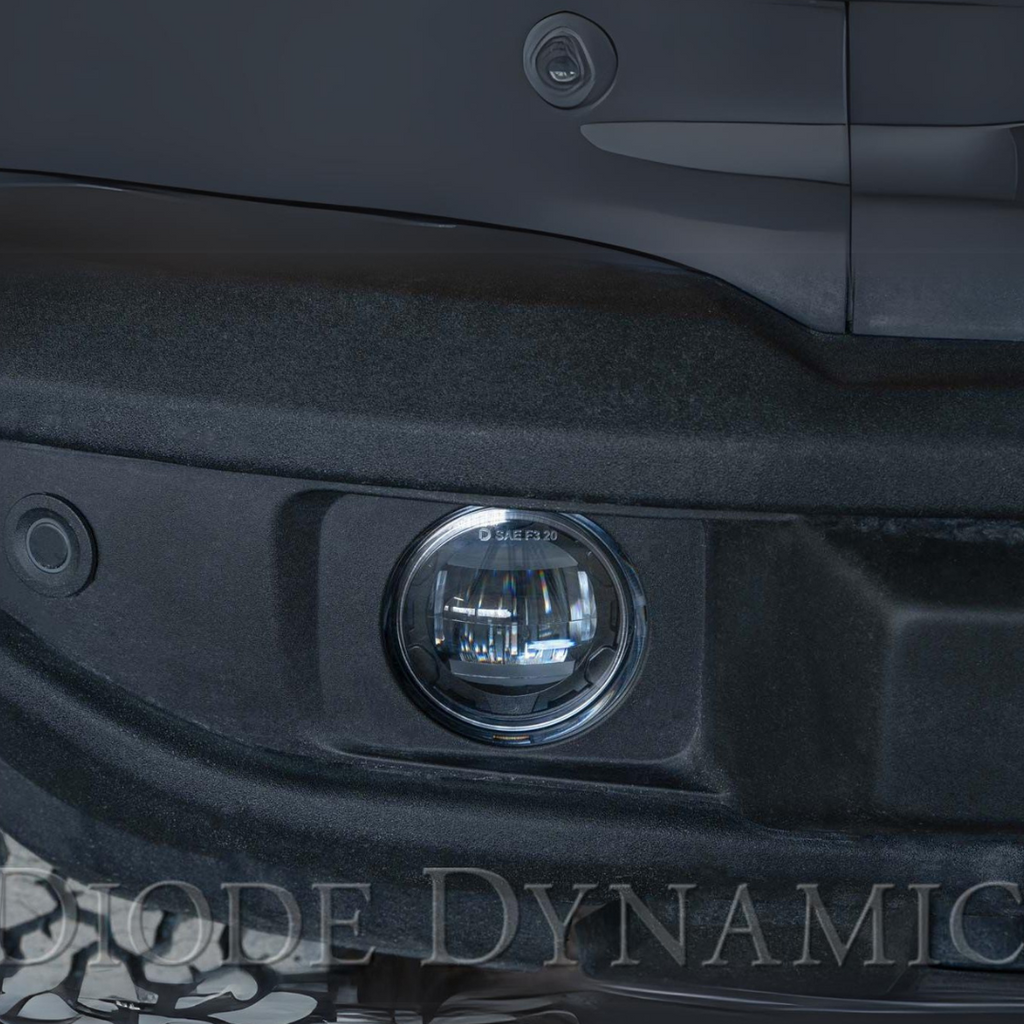

Introducing the Diode Dynamics Elite Series Fog Lamps for Ram 1500 W/O Factory LED Fog Lights (2019-2024): the first OE-style fog lights that were designed for true performance. For 2019 models, this kit is only compatible with the "New" body style. This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series fog light for the Ram 1500 delivers up to 5 times more output than halogen lamps. With a plug-and-play installation, this is one of the easiest and most effective upgrades you can make to improve your visibility in inclement weather.

Features

  • High-performance OEM-grade replacement for Ram 1500
  • Custom-engineered optic provides extremely wide, intense light output

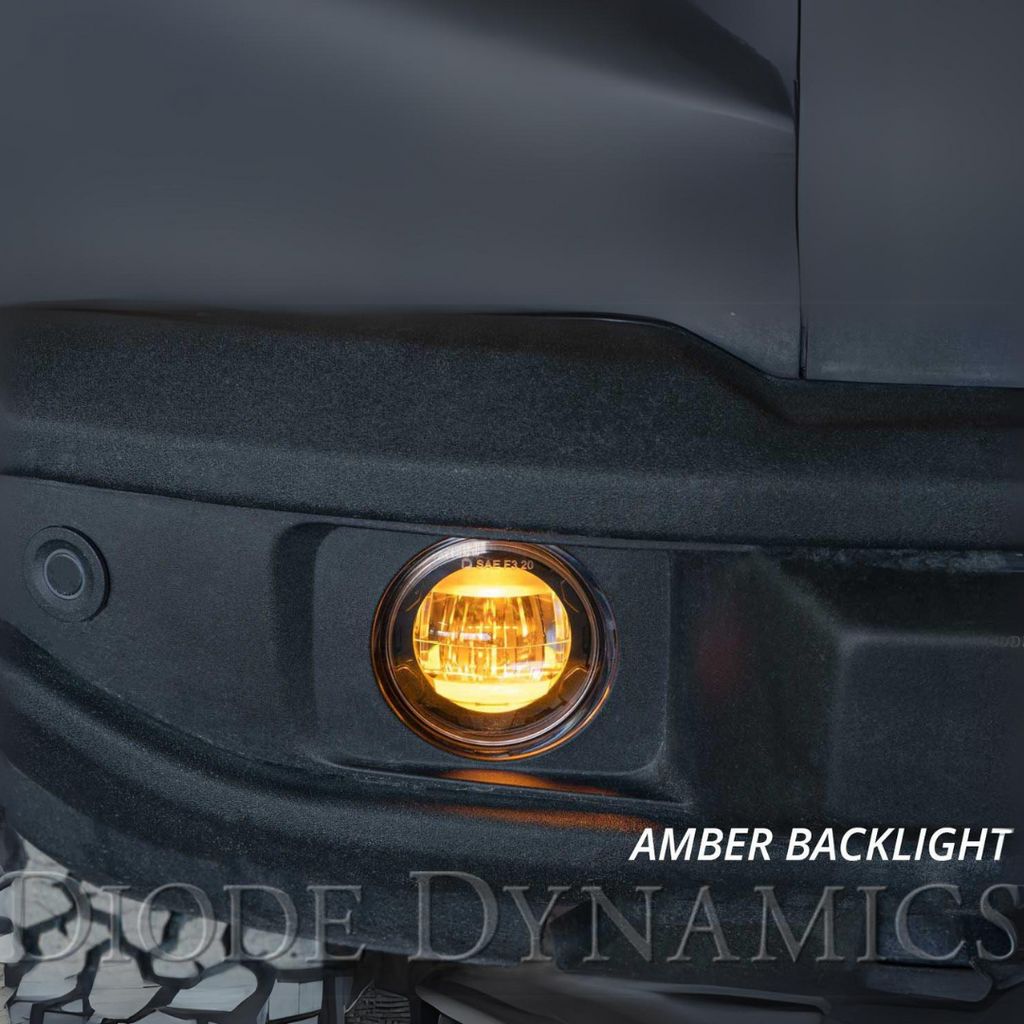

  • Distinctive integrated amber backlight
  • Road-legal fog light (SAE F3 compliant)
  • Plug and play main beam, no modification needed
  • Engineered and assembled in USA

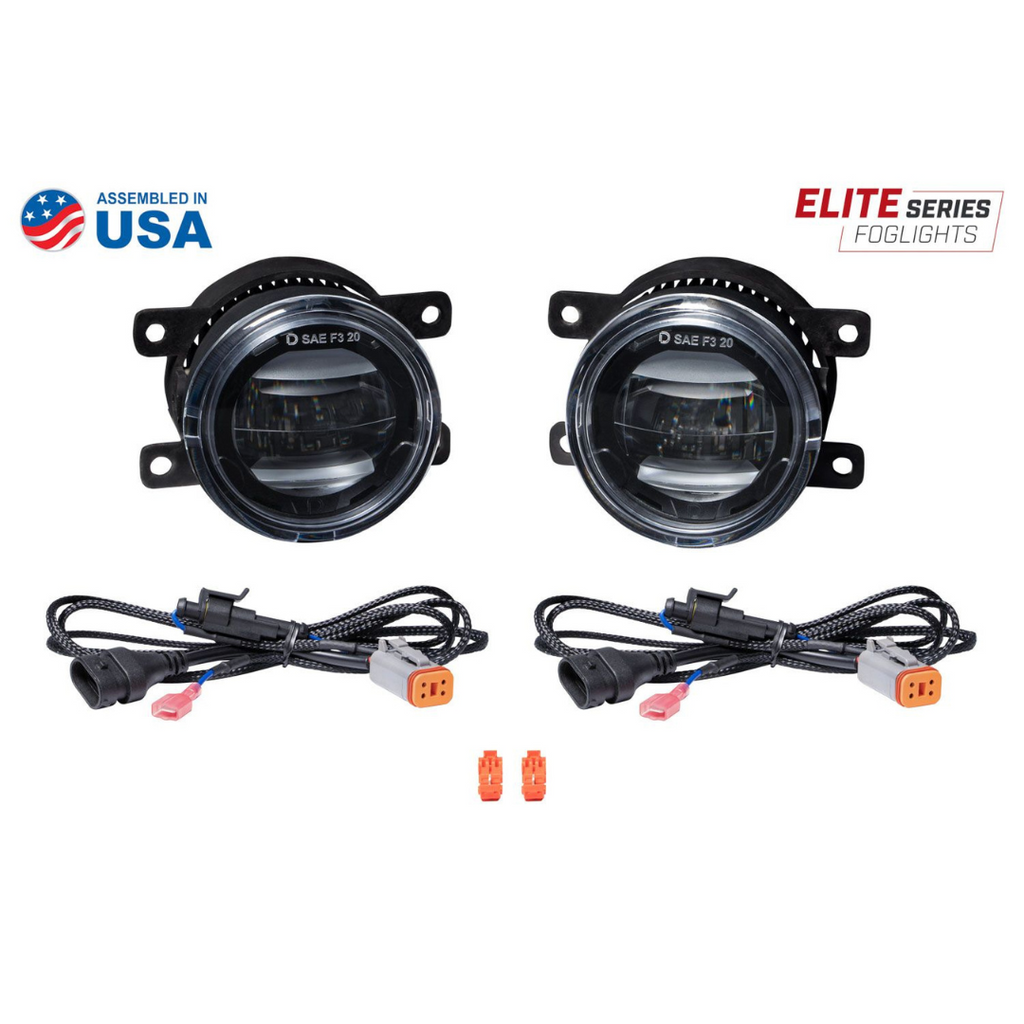

In the Box:

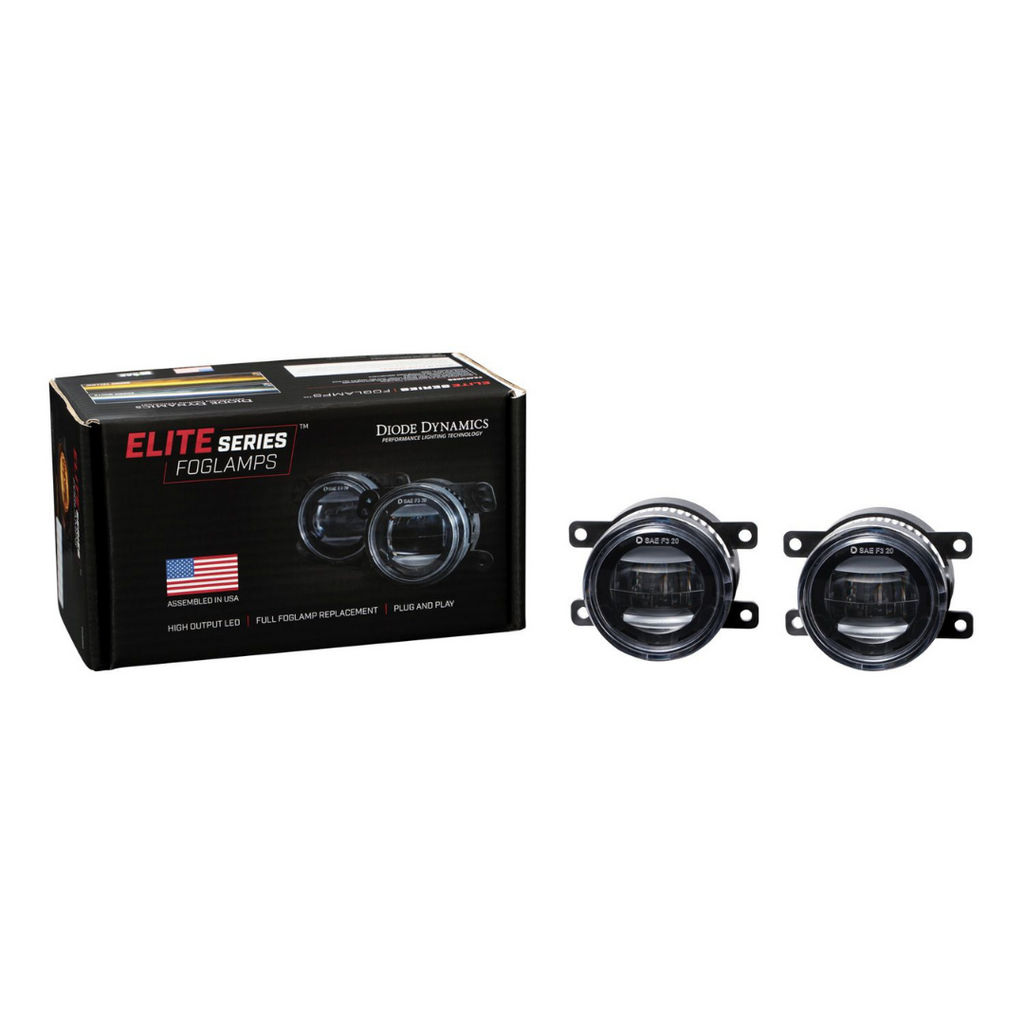

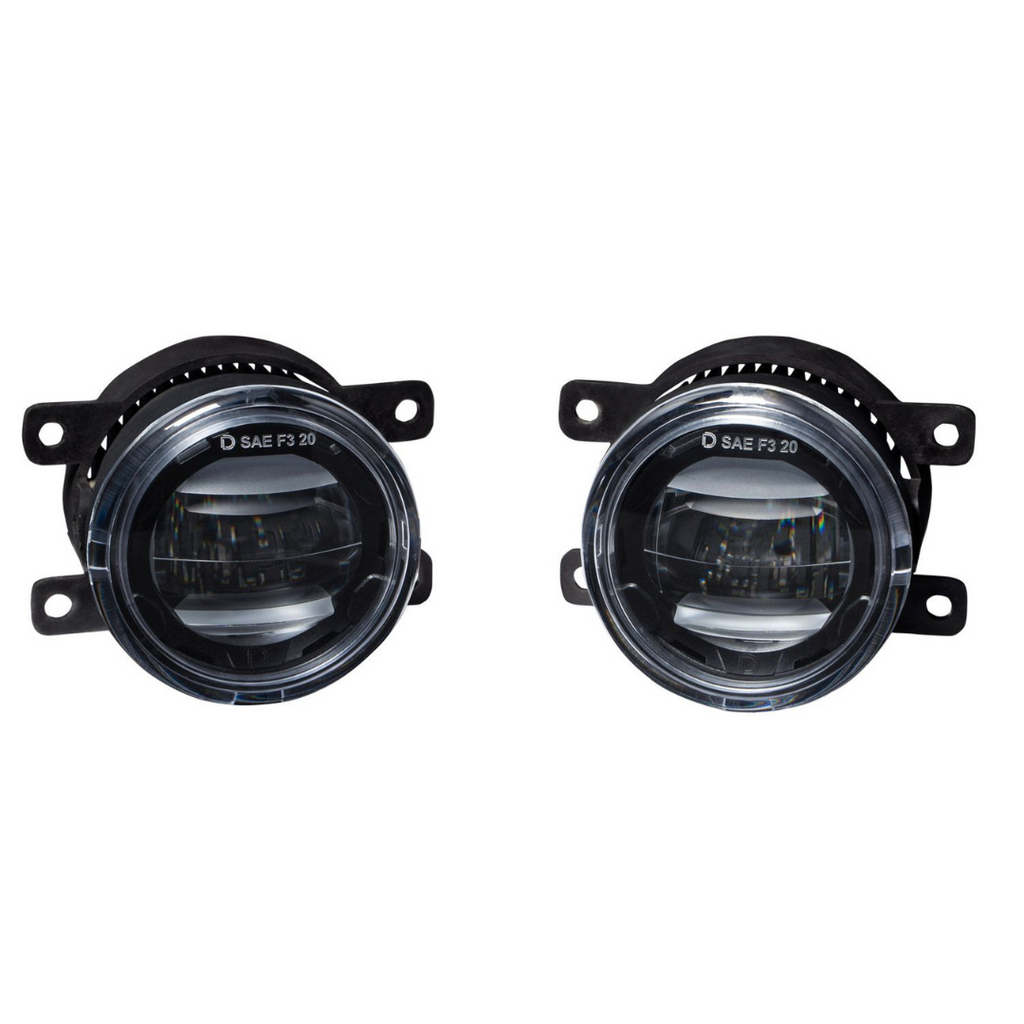

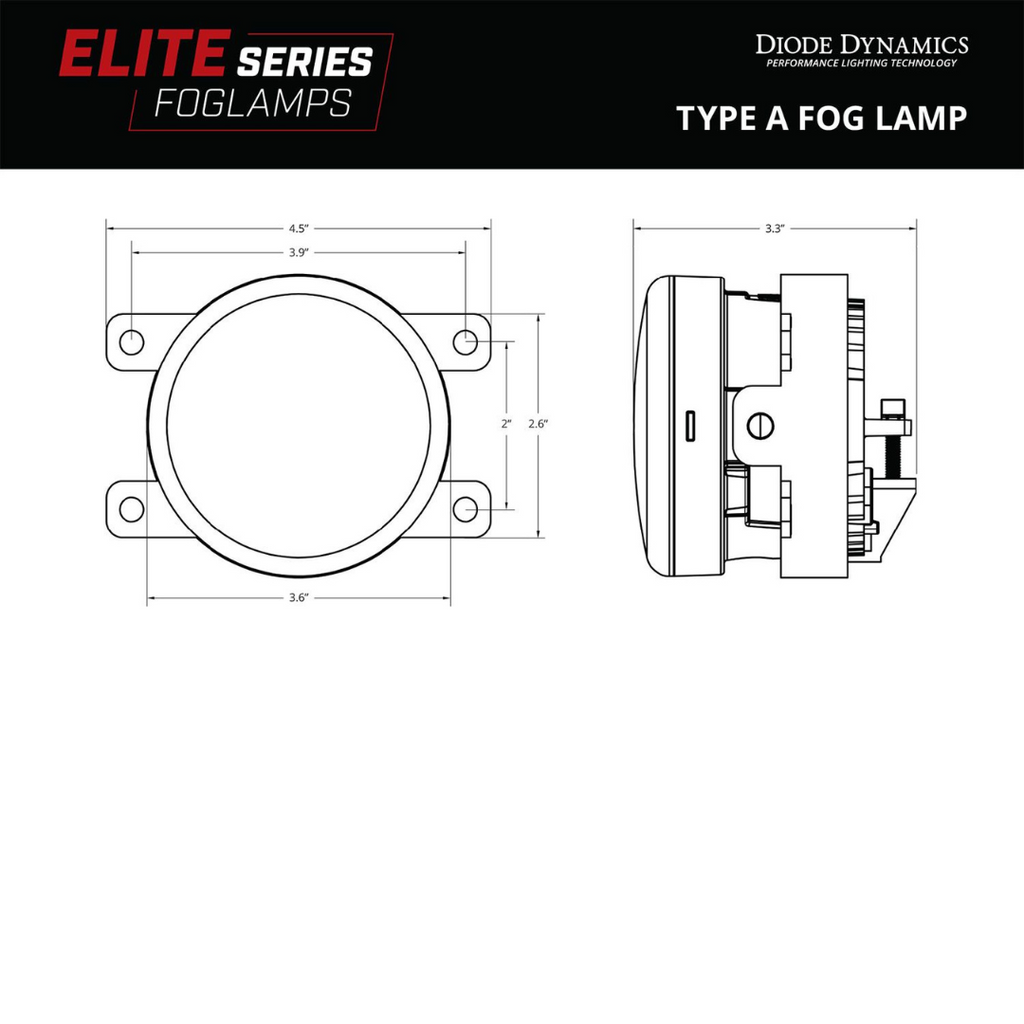

  • Two (2) Elite Series Type A fog lamps
  • Two (2) H11 4-pin DT backlight tap wires
  • Two (2) T-taps
  • Mounting guide

Fitment

Note: For 2019 models, this kit is only compatible with the "New" body style. This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

Application: Fog Light Make: Ram Model: 1500 Years: 2019, 2020, 2021, 2022, 2023, 2024
Installation
  • Aiming Instructions: Included
  • Installation Time: 30-60 minutes
  • Tools Needed: Basic Toolset
  • Modification: None

Specifications

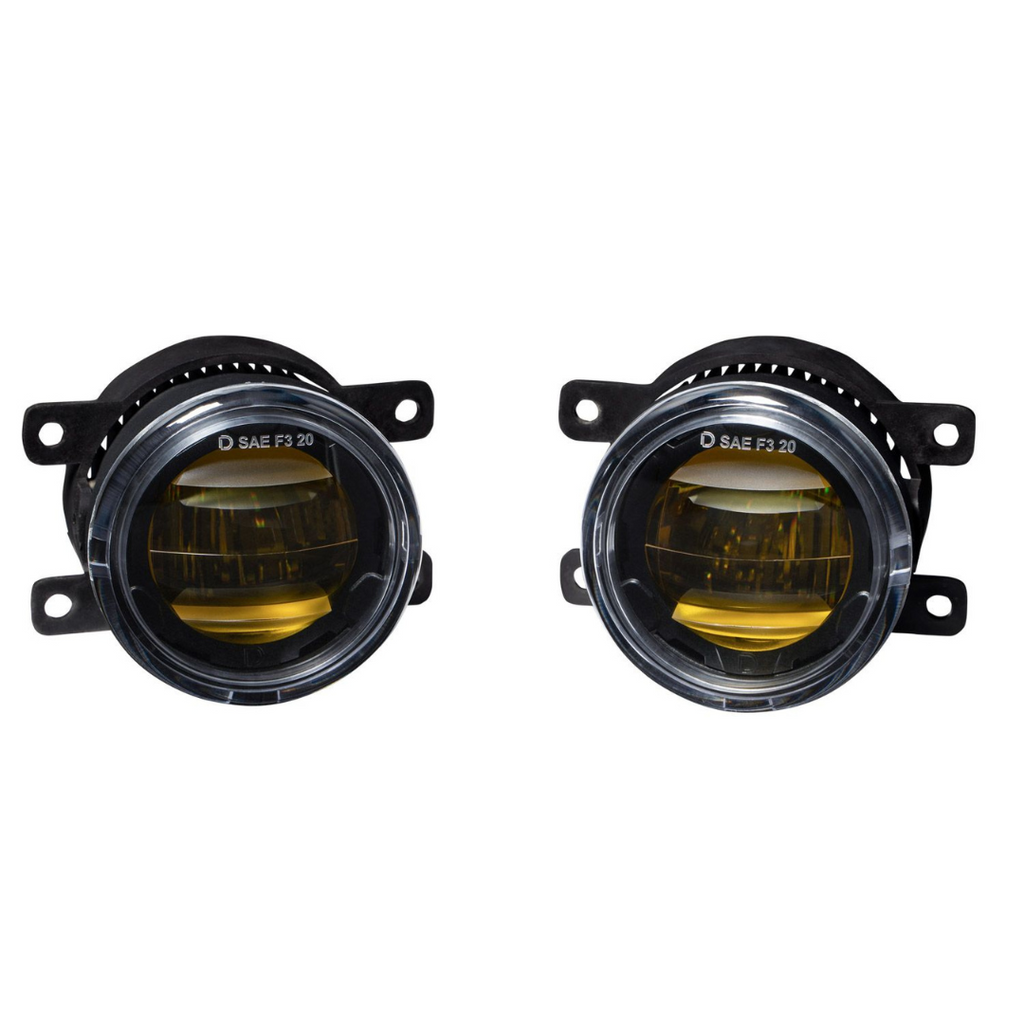

  • Raw Lumens: White: 1,850 lm, Yellow: 1,650 lm, Backlight: 14 lm
  • Intensity (cd): White: 13,000 cd, Yellow: 11,400 cd
  • Color Temp (CCT): 1800K, 3000K, 6000K
  • Beam Angle: Fog, 80°x6°
  • Power (watts): White & Yellow Main Beam: 18, Backlight: 0.3
  • Operating Voltage: 9-16V
  • Current (amps @ 13.2V): White & Yellow Main Beam: 1.4A, Backlight: 25mA
  • Wire Size: 16AWG & 18AWG
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Multi-Die Automotive Emitters
  • Connector(s): Deutsch DT Input
  • Driver Features: Constant Current
  • Materials: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

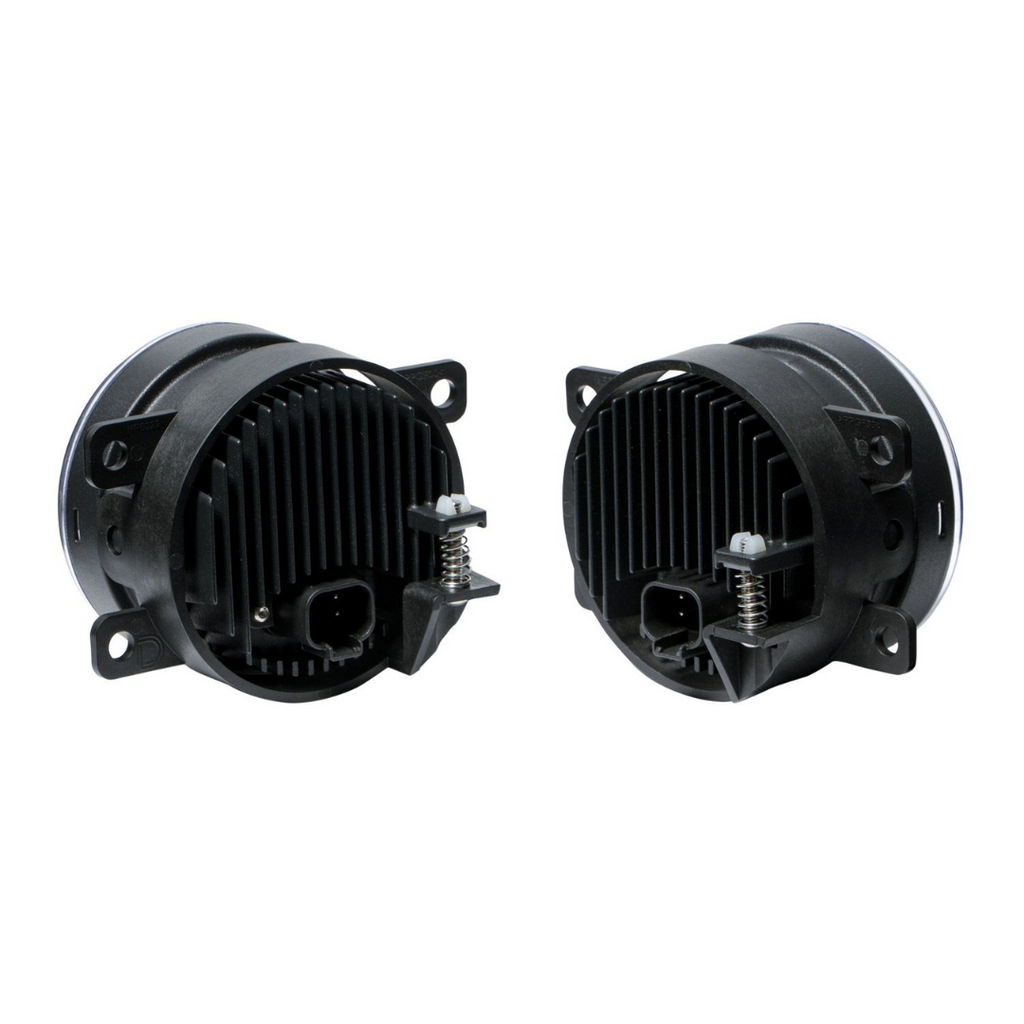

  • Cooling: Passive, Pin-Fin heatsink
  • Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
  • Intrusion Ratings: IP68 Waterproof
  • Unit Weight (lb): 0.85
  • Product Weight (lb): 2.25
  • Shipped Weight (lb): 2.75
