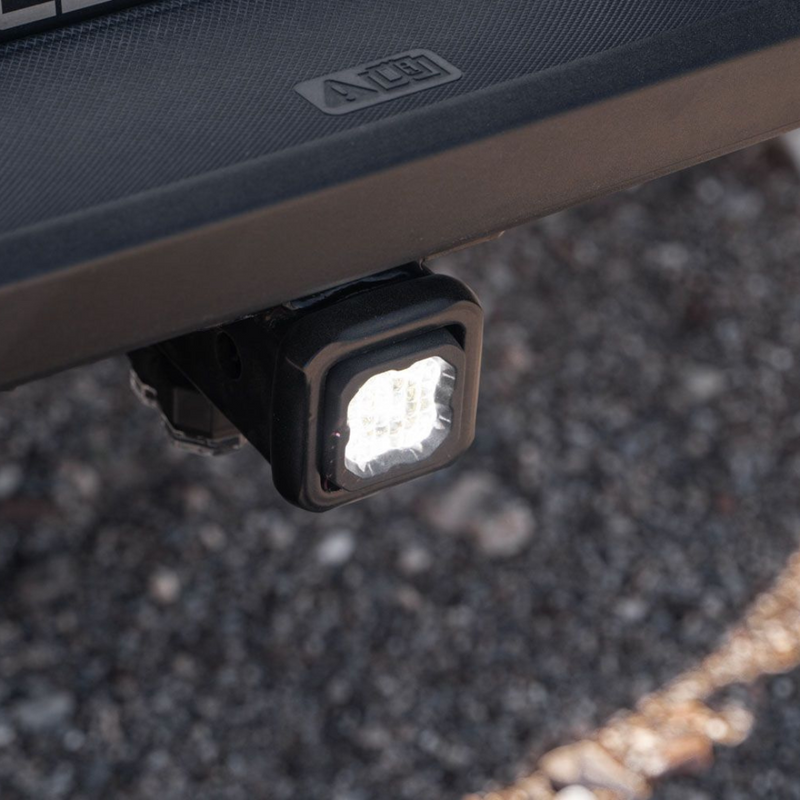

Add significantly more light output when backing up at night with our Stage Series HitchMount Reverse Light Kit! This kit allows you to mount one C1R LED pod in your 2-inch trailer hitch receiver, adding a high-power reverse light, additional running light, and 4th brake light. The included harness plugs right into your factory wiring for easy installation and operation.
Features
- Allows you to mount a C1R LED pod in the Chevrolet Silverado 1500 trailer hitch receiver.
- Adds a powerful reverse light, 4th brake light, and additional running light.
- Simple 5-minute installation, with no need for custom wiring or routing wires.
- Optional SafetyStrobe brake light strobing.
- Designed and assembled in USA.

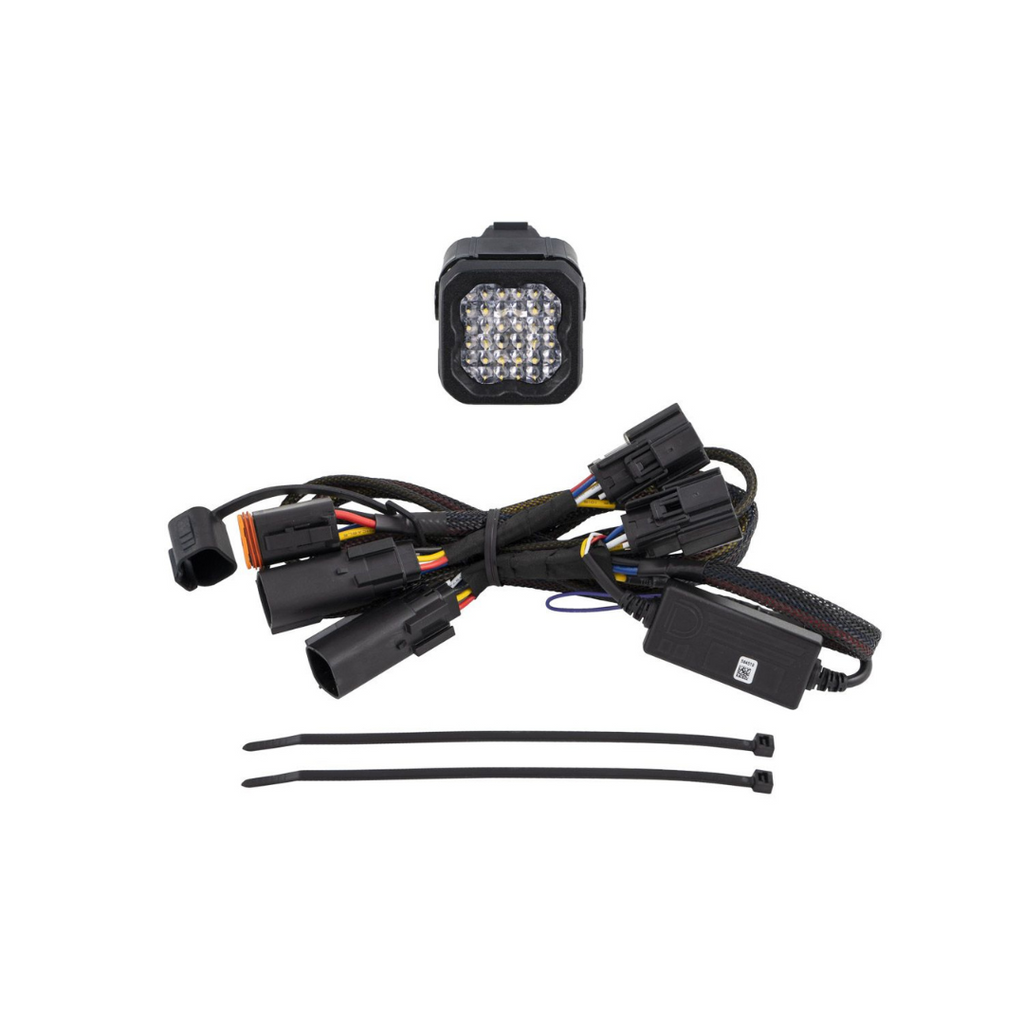

In the Box:

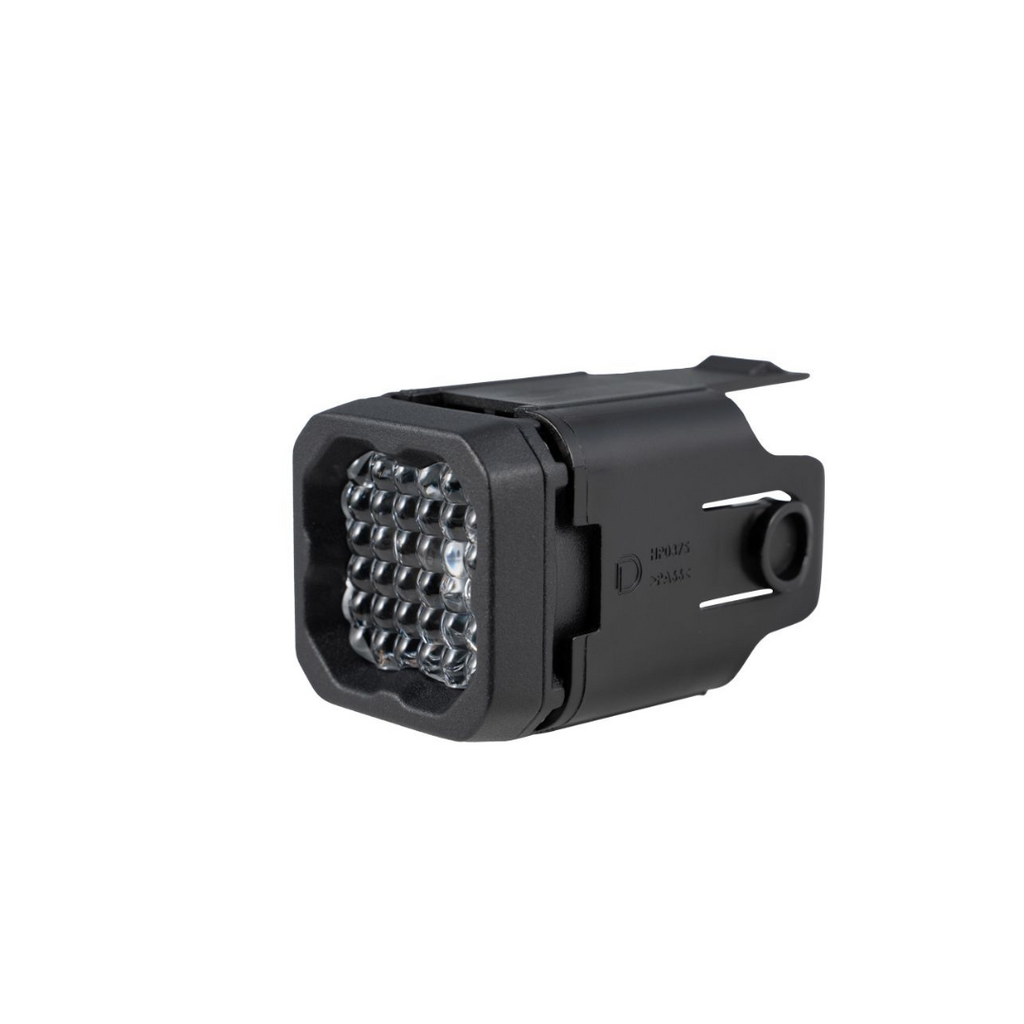

- One (1) C1R HitchMount LED Pod
- One (1) C1R HitchMount Harness for Chevrolet Silverado 1500 2019+
- Two (2) Zip ties
- Installation guide
Fitment
NOTE: If you would like to use a locking trailer pin to install this kit instead of the snap-fit pins, you can do so with a quick modification. Watch the video. This product is not intended to replace original factory tail lamps. Please ensure your trailer hitch has an open back before ordering.
- Application: Backup/Reverse Light
- Make: Chevrolet
- Model: Silverado 1500
- Years: 2019, 2020, 2021, 2022, 2023
Specification
- Color Temp (CCT): 6000K
- Operating Voltage: 9-16V
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Cree XP-L HI

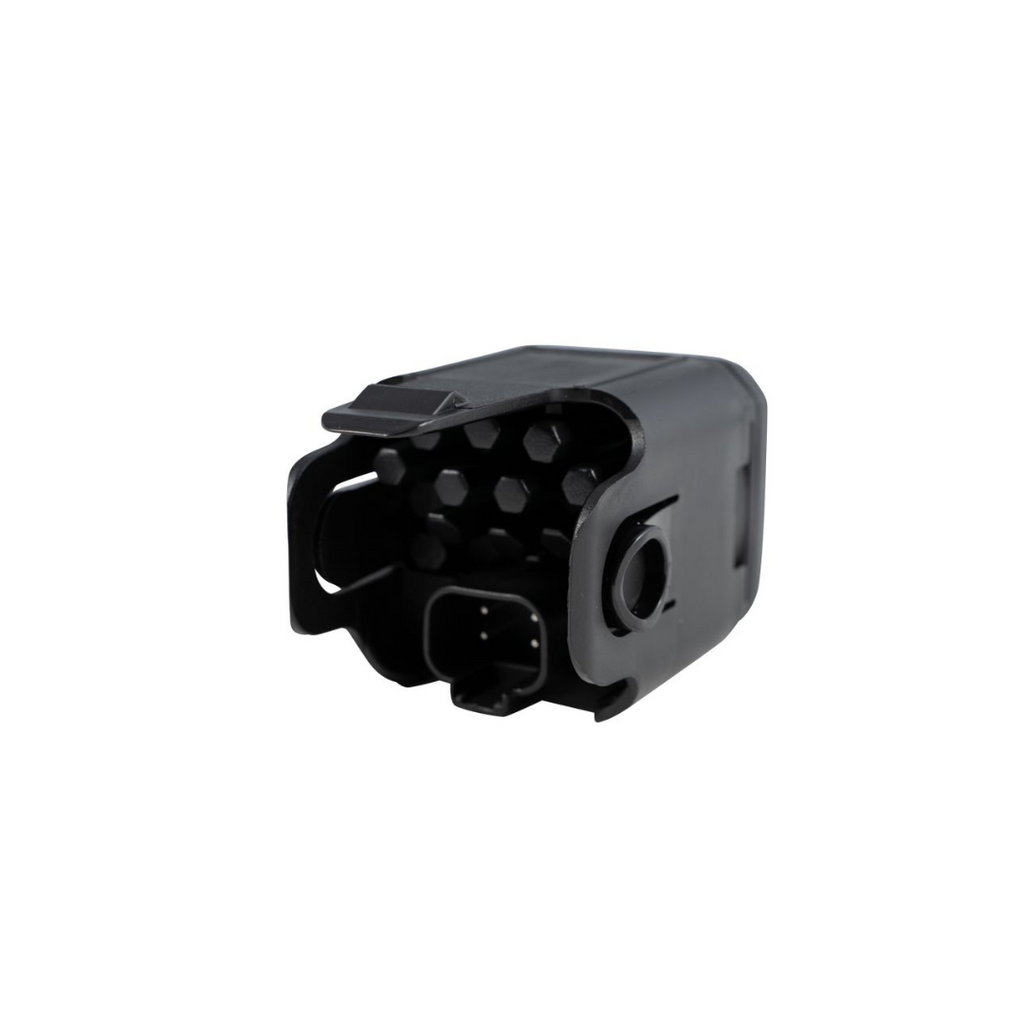

- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test
- Intrusion Ratings: IP67 Weatherproof
- Unit Weight (lb): 0.35
- Product Weight (lb): 0.70
Installation
NOTE: If you would like to use a locking trailer pin to install this kit instead of the snap-fit pins, you can do so with a quick modification. Watch the video.
- Installation Time: 5-10 minutes
- Tools Needed: Basic Toolset
- Modification: None
- Installation Guide: Click to download

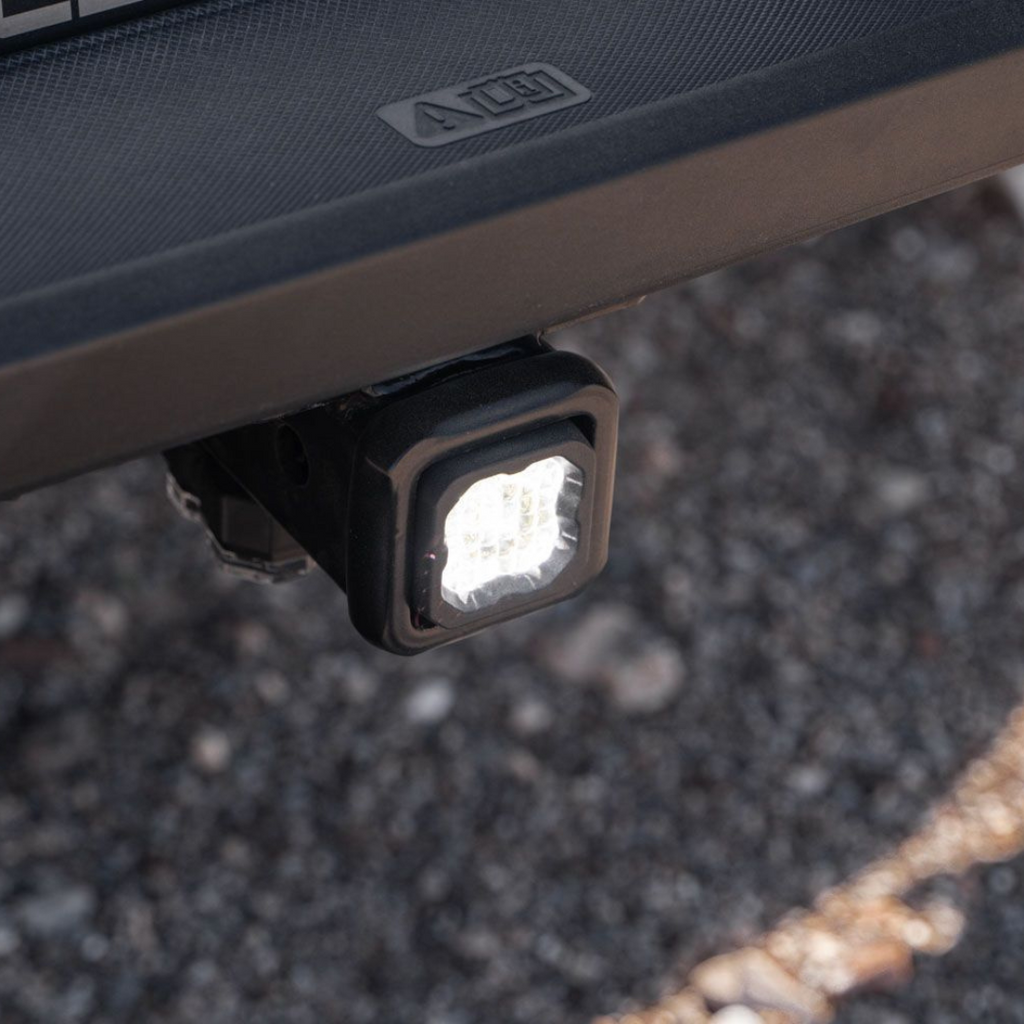

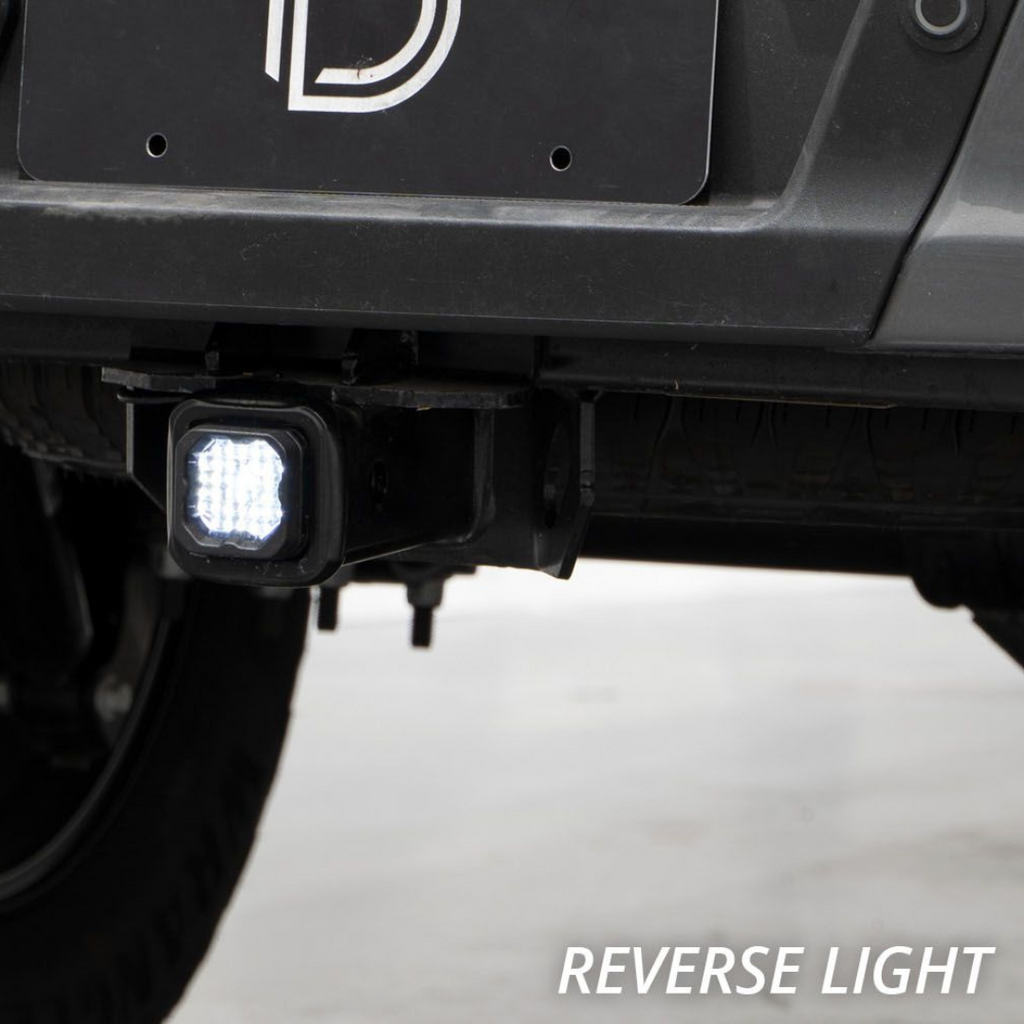

Brighter Backup. Factory reverse bulbs just don't provide enough light output to back up at night confidently. By pairing our patented TIR optics with high-powered LEDs, the C1R included in this kit provides an additional reverse light that's several times brighter than stock bulbs alone. Plus, they automatically come on when the vehicle is put in reverse!

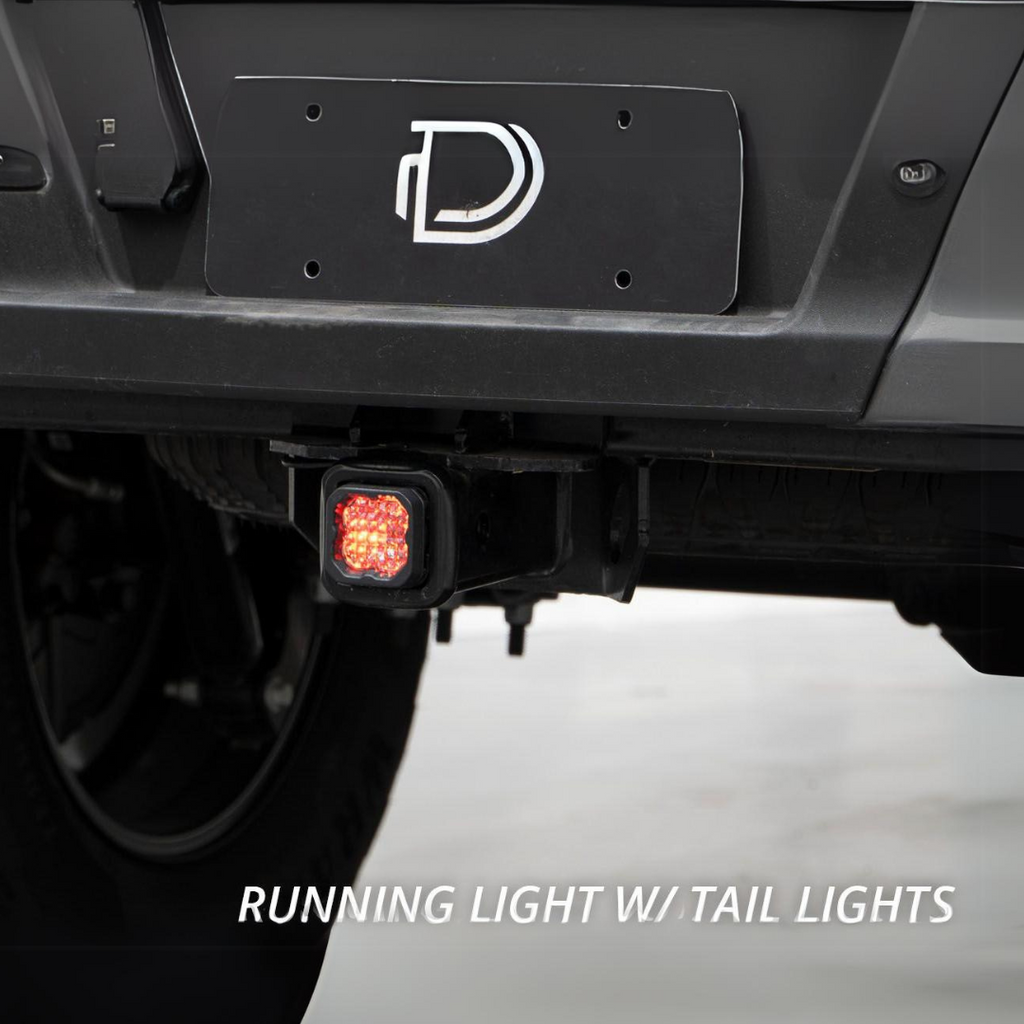

Additional Running Light. The Stage Series C1R LED pod included with this kit feature a distinctive red backlight that can be used as an additional running light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

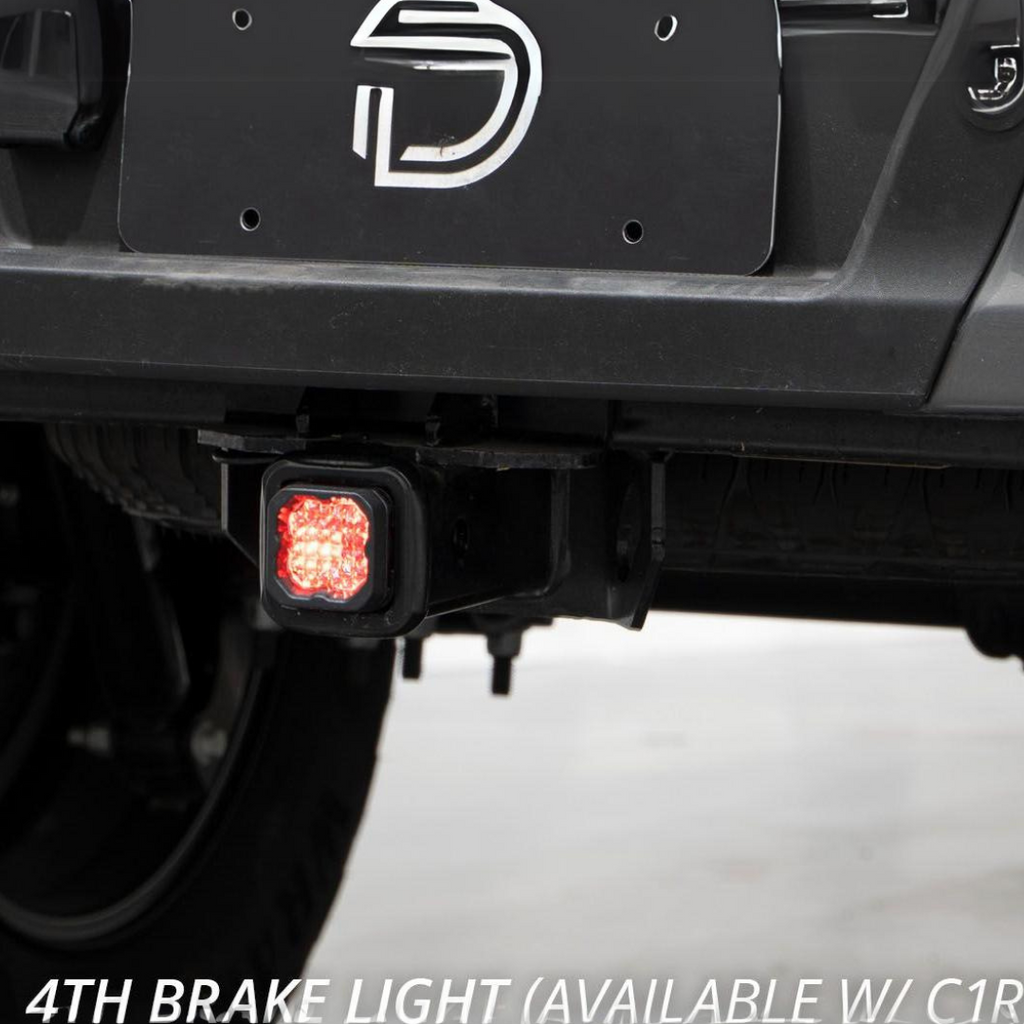

SafetyStrobe 4th Brake Light. The C1R LED pod features a high-power red function to serve as a powerful 4th brake light, along with the low-power running light. The high-power red functionality activates anytime you apply your brakes, adding a 4th brake light to your Silverado.
The C1R also features optional brake light strobing, which can be activated in 15-second intervals. By default, the C1R will flash three times when the brake lights are initially applied, for greater visibility. The SafetyStrobe feature can be easily disabled if desired.
Everyday Operation. This kit is completely plug-and-play with factory connections for the C1R pod. The included harness plugs right into your factory wiring for easy installation and operation. The kit operates as an additional red running light with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The high-power 4th brake light feature included with the C1R will activate anytime you apply your brakes. If you would like to have override functionality to manually turn on the reverse light anytime, you will need to purchase the universal backup harness.
Functional Output. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the C1R LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, the flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.
