Diode Dynamics Stage Series Fog Pocket Kit for Ram 1500 (2019-2024)


Earn [points_amount] when you buy this item.

Select Power Level: Sport (7.7 watts)
Select Color: Cool White (6000K)
Price:
Sale price$419.95
Diode Dynamics Collection Shop all Diode Dynamics Products
Shop now
Need Assistance? Give us a call or send us an email
Contact Us

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

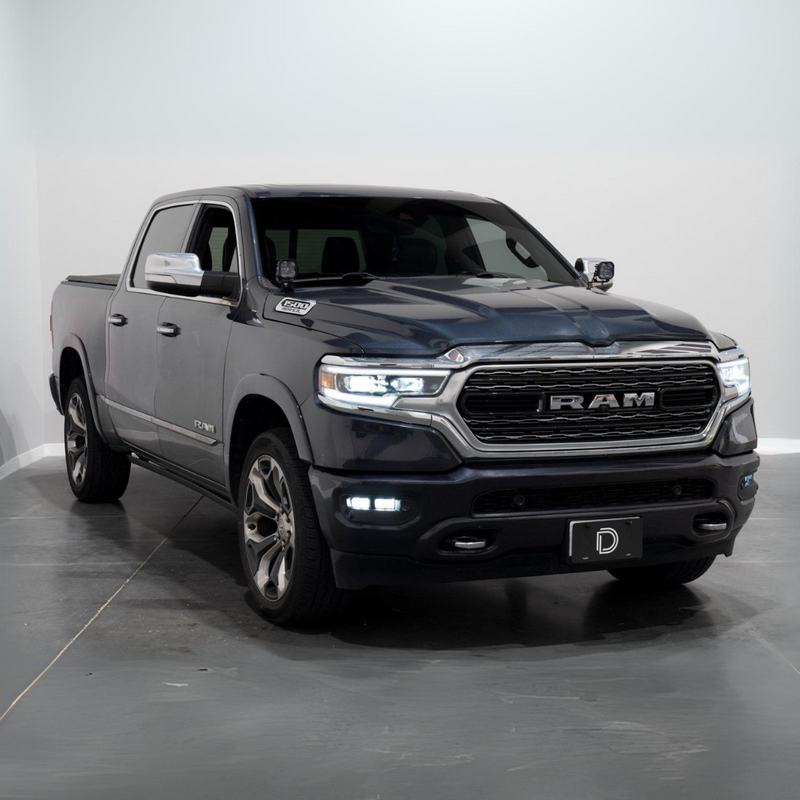

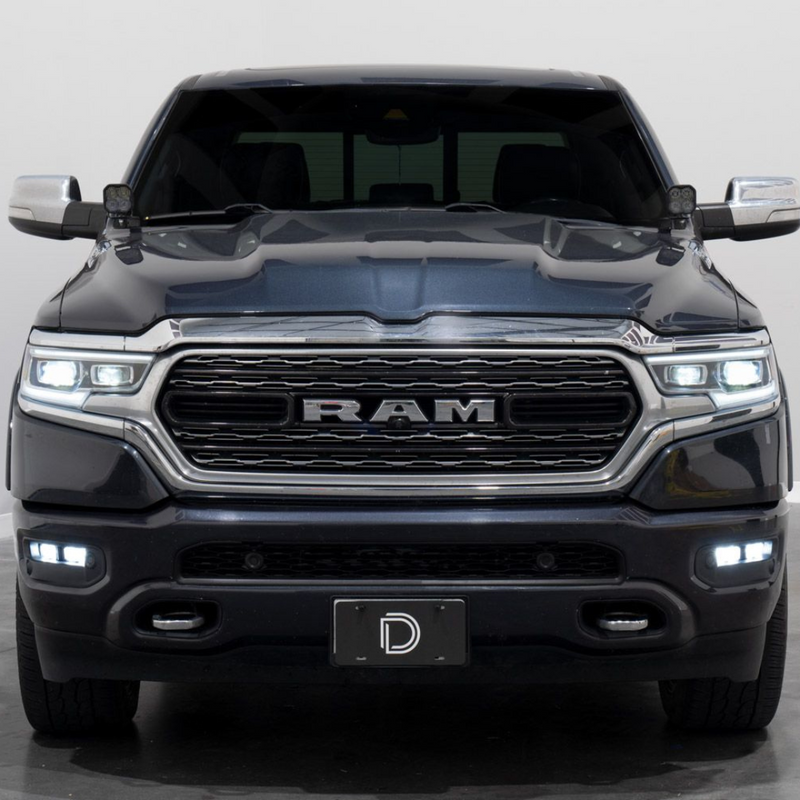

If you are looking to add an aggressive offroad appearance to your Ram 1500 while still having road-legal fog lights, look no further! The Diode Dynamics Stage Series Fog Pocket Kit for Ram 1500 (2019-2024) adds four road-legal SSC2 fog pods in place of your factory fog lights, for a significant increase in light output.

Features

  • Bolt-on fitment for 2019-2023 Ram 1500.
  • Adds brighter SAE-compliant fog lights.
  • Plug-and-play, no modification needed.
  • Backlight feature provides amber accent light.
  • Highly durable powdercoated stainless steel bracket.
  • Engineered and assembled in USA.

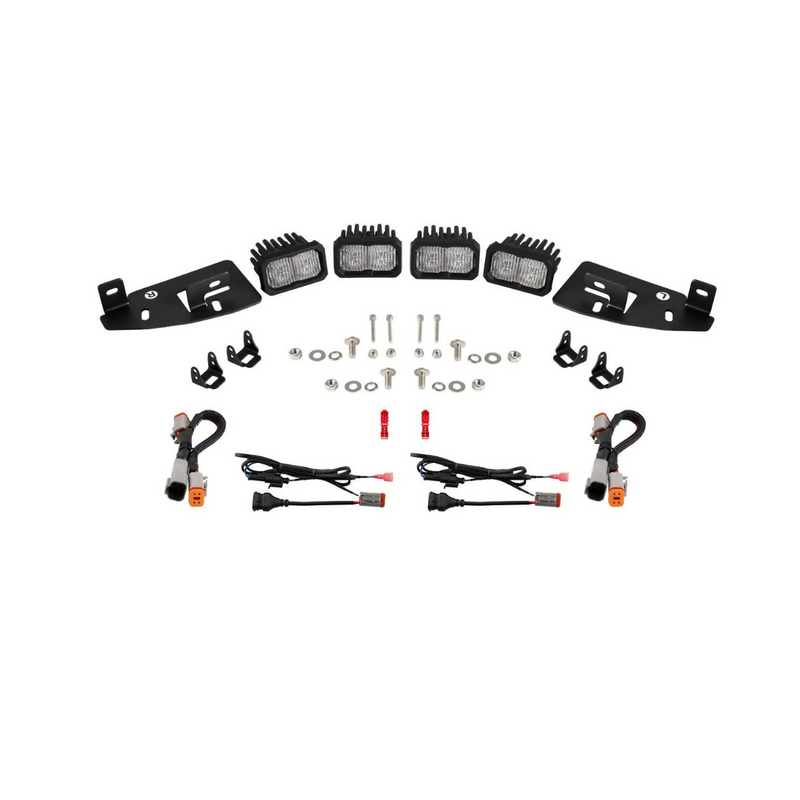

In the Box:

  • Four (4) Stage Series 2" LED Pods

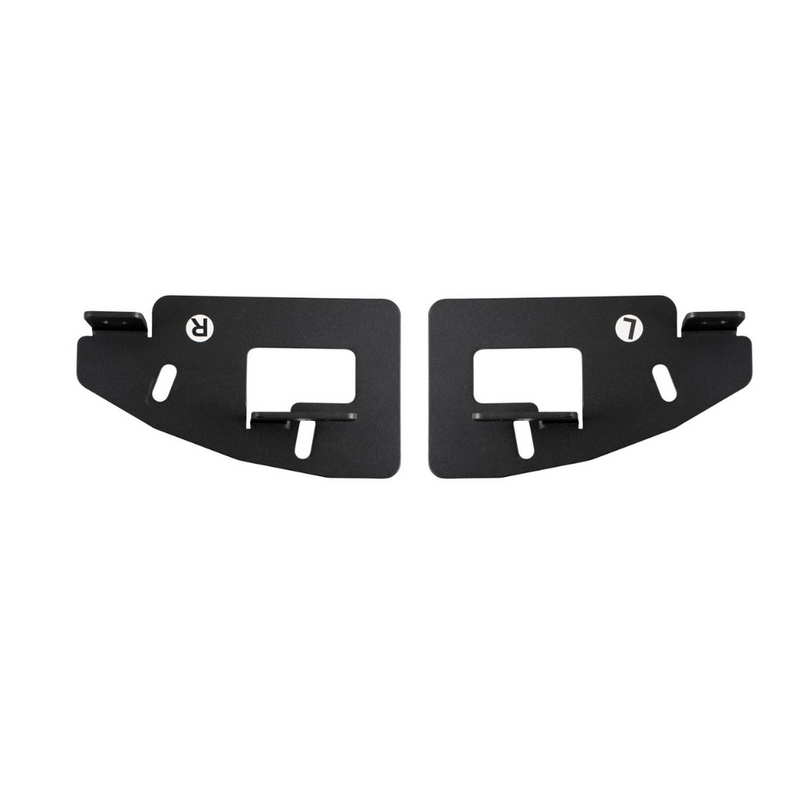

  • Two (2) Ram 2019+ Fog Pocket Brackets
  • One (1) H11 4-Pin DT Backlight Tap Wire Kit
  • Two (2) CrossLink Splitter Harnesses

Fitment

NOTE: This kit is not compatible with Big Horn and Tradesman trim levels equipped with halogen fog lights from the factory.

  • Application: Fog Light
  • Make: Ram
  • Model: 1500
  • Years: 2019, 2020, 2021, 2022, 2023, 2024

Installation
  • Installation Time: 1-2 hours
  • Tools Needed: Basic Toolset
  • Modification: Basic Wiring Only

Specifications

  • Power (watts): Main Beam: 7.7, Backlight: 0.7
  • Operating Voltage: 9-16V
  • Current (amps @ 12.8V): Main Beam: 0.6, Backlight: 0.06
  • Polarity: Polarity Specific
  • Operating Temperature: -40C to 85C (-40F to 185F)
  • LED Emitter: Luxeon Z ES
  • Connector(s): Deutsch DT Input, Spade Terminals
  • Driver Features: Constant Current
  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
  • Cooling: Passive, Pin-Fin heatsink
  • Compliance Ratings: SAE J575 Durability Test
  • Intrusion Ratings: IP67 Weatherproof
  • Product Weight (lb): 6.00
  • Shipped Weight (lb): 7.5

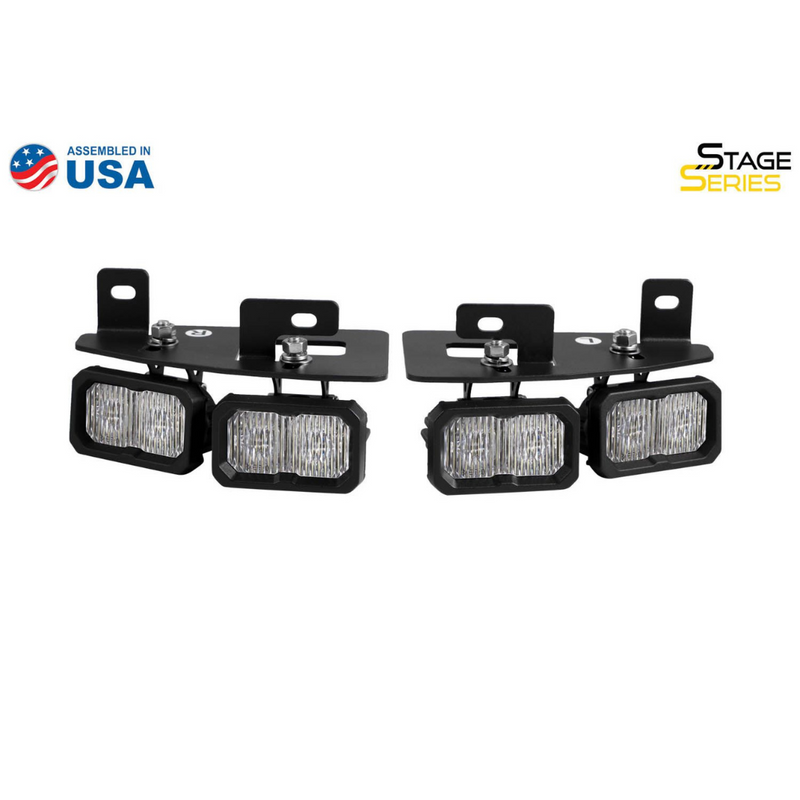

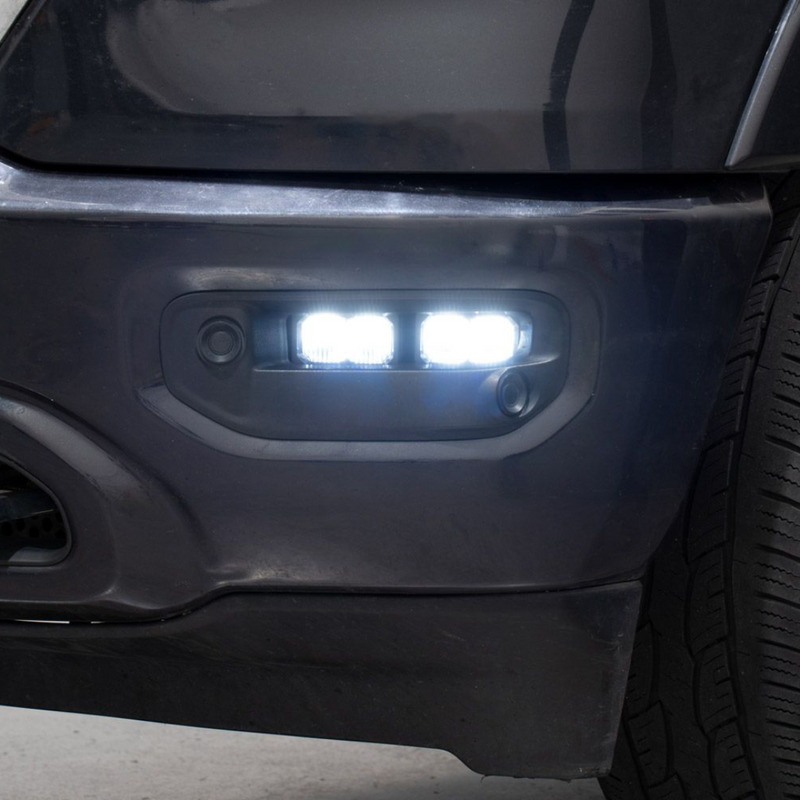

Unmatched Light Spread. This kit includes four SSC2 LED Pods in the SAE-compliant fog beam pattern. The unique design of the fog pocket brackets allows you to aim the inside pods straight ahead, while the outer pods are slightly offset allowing for an even further spread of light.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your vehicle.

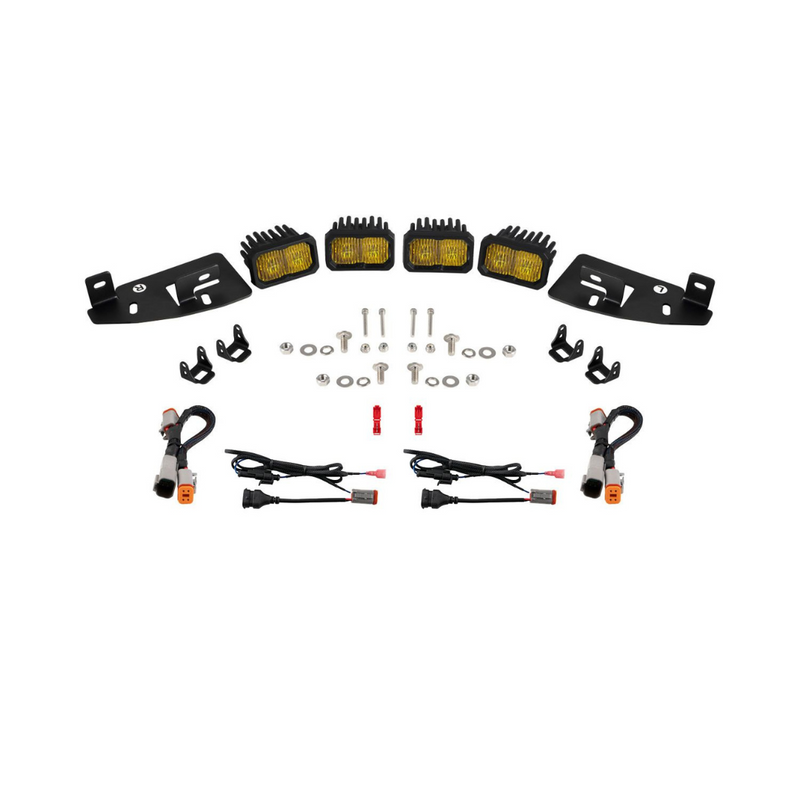

White or Yellow Fog. The SSC2 fog pods included with this kit are available in both cool white and selective yellow LED pod options. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Backlight Functionality. Each pod in this kit includes a distinctive Amber backlight feature. This integrated backlight gives you an additional accent light, along with the main beam. The backlight on each SSC2 fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. The backlight is powered using the included H11-size adapter to tap your desired vehicle function.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
